Splunk App AvayaCDR

Posted: November 16, 2020 in Avaya CDR, News

We have created a Splunk App called Avaya CDR, the current version of the app is 1.0.1. You can download the app free from here. After download, use the Splunk Manage App function to upload the file avayacdr[version].tar.gz into Splunk. Then enable the Splunk HTTP Event Collector Global Setting. Also update the parameters of  AvayaCDR with the the following console commands:

  • update parameter cdr_splunkdataformat json
  • update parameter cdr_splunkhecchannel f809f862-85c4-45df-b8e6-d66d26fd6eb0
  • update parameter cdr_splunkhectoken f809f862-85c4-45df-b8e6-d66d26fd6eb0
  • update parameter cdr_splunkhecurl http://127.0.0.1:8088/services/collector
  • update parameter cdr_splunkprotocol hec
  • reload

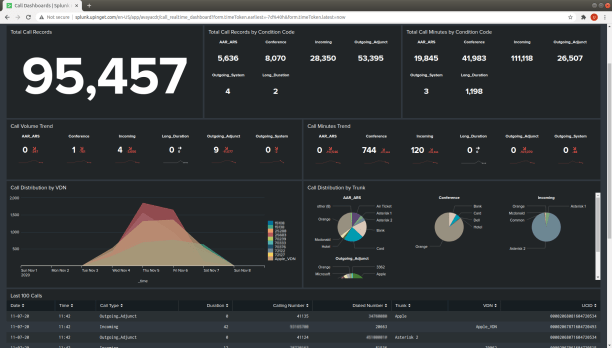

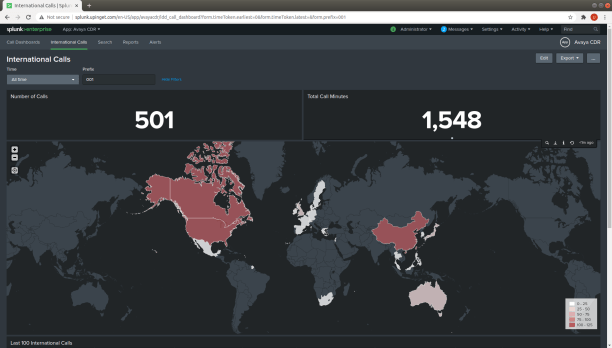

When you send the CDR to this Splunk App, you can see the following Call and International dashboards. Enjoy!
