Archive for the ‘DMCC’ Category

DMCCLogger 1.0.7 Released

Posted: January 27, 2021 in DMCC, News

DMCCLogger 1.0.7 just released, this version has the following updates.

1. Add linkstatus API to check link status.
2. Writes the logger id to the t_astcalldata table to support centralized database.
3. Fixed a bug that singlestep conference call failed due to change of call id.
4. Fixed a bug that call file is spited for conference call.
5. Migrate PHP mysql to mysqli package.
6. Remove support of IE for call playback, the library SoundManager has removed.
7. Support Ubuntu 18.04 and 20.04 distribution.

DMCCLogger 1.0.6 Released

Posted: August 12, 2020 in DMCC, News

DMCCLogger 1.0.6 just released, this version has the following updates.

1. Add parameter dmcc_sscrestriction to restrict recording only for “acd” or “station” call.
2. Use latest version jrtplib (3.11.2).
3. When AES close the connection, reset the socket connection to AES and reset the session id.
4. Add Admin APIs for integration with other front-ends.
5. The API for saving application data also accepts UCID as a unique key.
6. Check the decrypted password and only proceed to add phantom and extension when the password is valid.
7. Move un-answered voice file to default recording path.
8. Fix extension is not read from database during program startup.
9. Alter the tRecordPath table to have one additional field to define the SFTP folder for the unencrypted voice files.
10. Add a new table for the mapping of the SFTP folder for unencrypted voice files to SFTP destination.
11. Modify DMCCLogger to store unencrypted voice files to the SFTP folder.
12. Modify Alarchived to upload the voice files in the SFTP folder to SFTP destination server and delete the unencrypted voice files once the upload is completed.

DMCCLogger 1.0.5 Released

Posted: July 31, 2019 in DMCC, News

DMCCLogger 1.0.5 just released, this version has the following updates.

1. Fixed segmentation fault caused by deletion of phantom object which is a member of the call info record.
2. Collects trunk group and trunk member data from the conference event when the data is not in the delivered and established events.
3. Two parameters to load the certificate and key files, the two parameters are “dmcc_sslcertfilename” and “dmcc_sslkeyfilename”.
4. Add info field for each extension record.
5. Clear phantom connection when the extension dropped from recording by normal hangup or transfer.
6. Relogin the phantom when it is out of service during engaging in a recording call.

DMCCLogger 1.0.4 Released

Posted: September 22, 2018 in DMCC, News

DMCCLogger 1.0.4 just released. The updates are

1. Supports SIP extension outgoing calls.
2. Supports application users.
3. Supports HTTP header with username and password for the REST interface.
4. Supports username and password for the WebSocket interface.

Also, the installation guide is updated to include support of CentOS 7.x and MySQL 8.x.

DMCCLogger 1.0.3 Released

Posted: June 16, 2017 in DMCC, News

DMCCLogger 1.0.3 just released. The updates are

1. Fixed merged calls when new a call appeared immediately after an old call disconnection.
2. Fixed encryption key loaded incorrectly when program startup.
3. Application data is stored together with call data which is in the t_astcalldata table.

Avaya DMCC Logger

Posted: April 18, 2017 in DMCC

Introduction

The Avaya DMCC Logger (DMCCLogger) is a server program that uses Avaya DMCC API to implement call recording for Avaya Aura Communication Manager. DMCCLogger supports Multiple Registration (MR) and Single Step Conference (SSC) recording methods. DMCCLogger receives RTP streams from Avaya Aura CM directly and converts the RTP data to WAV or MP3 file using conversion tool such as ffmpeg. Call details information is stored in MySQL database, a web based software called DMCCLoggerWeb is developed for searching of call records based on information such as calling number, called number, agent ID, etc. DMCCLogger is an ideal tool for contact centers when call recording is necessary in the daily operation because it is reliable and the cost is very competitive.

Prerequisites

Please make sure you have the following Avaya features and systems installed for the DMCCLogger installation.

  • Avaya AES with DMCC licenses
  • Avaya AES with TSAPI license for third party device monitoring
  • Avaya phantom extensions configured with IP software feature
  • CentOS / Ubuntu 64bit OS with MySQL

System Architecture



  • DMCCLogger monitors Avaya extensions and triggers recording by multiple registration or single step conference recording methods.
  • Avaya sends RTP streams to DMCCLogger.
  • DMCCLogger writes all voice files to a distributed network file system such as MooseFS so voice files can be consolidated in one place such as data center and the files can be shared among different applications. For example, DMCCLoggerWeb.
  • DMCCLogger writes call details information and business data (via DMCCLogger API) to MySQL database.

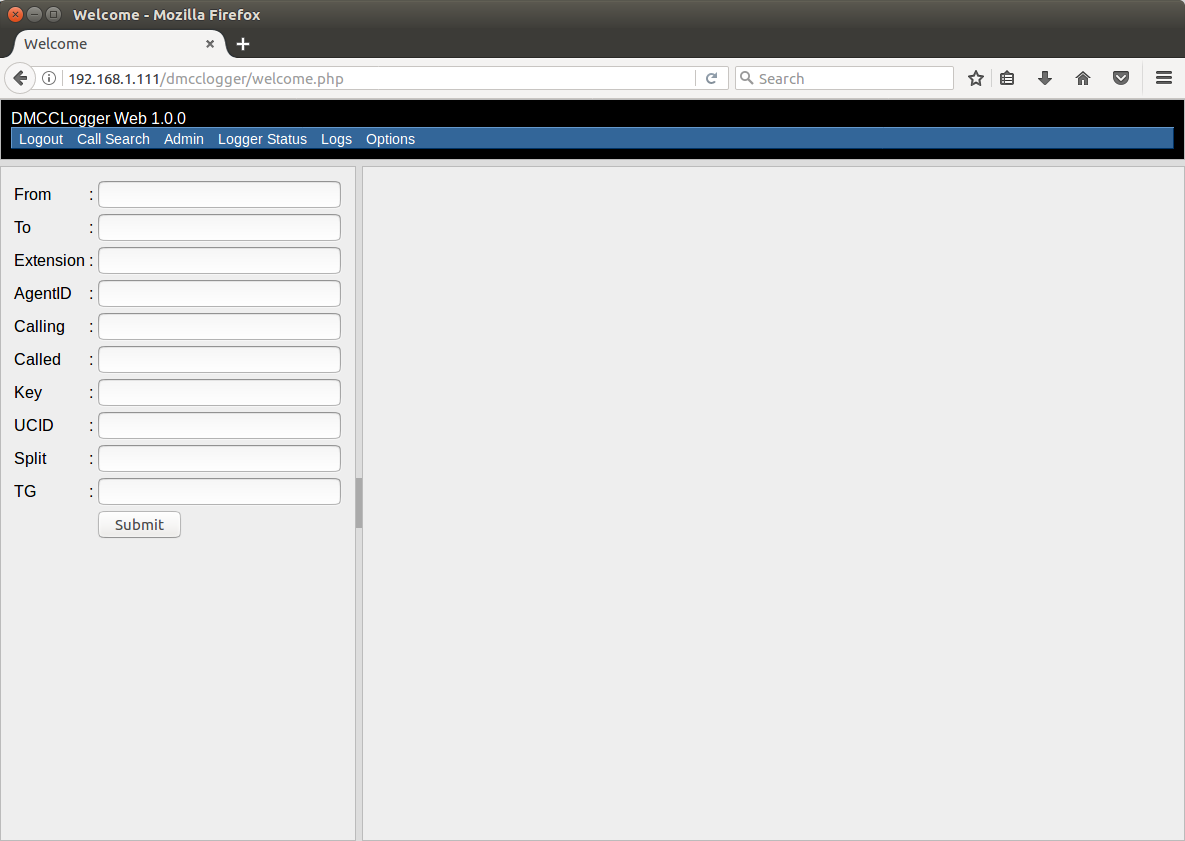

  • DMCCLoggerWeb retrieves call records based on user provided data such as calling number, called number, agent ID, etc.
  • The architecture supports multiple DMCCLogger servers with one centralized database.

Pricing Details

Check the pricing from this URL

OVA File for Testing

centos

We have created a OVA file which you can deploy it to VirtualBox or VMware for testing.  After deploying the OVA file, please modify the following for your own environment.

  • IP address of the VM
  • Telnet to DMCCLogger console port 14005
    • Update parameters such as dmcc_dlink_01, dmcc_licensekey, dmcc_rtpbindingaddress, etc
    • Add agent extensions by command “add extension”
    • Add phantom devices by command “add phantom”
    • Hint: Referring to the following section “DMCCLogger Parameter Configuration” for detail information
  • Once the changes are completed, reboot the VM

The username and password of the OVA VM is

  • OS : root/P@ssw0rd
  • MySQL: root/P@ssw0rd
  • DMCCLogger console: tcpgate/tcpgate01
  • alarchived console: tcpgate/tcpgate01

DMCCLogger Parameter Configuration

  • After the software is installed, telnet DMCCLogger program console to configure necessary parameters
  • The port number of DMCCLogger program console is 14005, default username tcpgate and password tcpgate01
  • update parameter dmcc_dlink_01 AESIP#4721#CTIUSER#ENCRYPTEDPASSWD#false#6#SWITCHNAME
    • Hint: AESIP is the IP address of AES
    • Hint: 4721 is the AES DMCC listening port, 4722 is listening port with encryption
    • Hint: CTIUSER is the AES cti user login
    • Hint: ENCRYPTEDPASSWD is the encrypted password of the AES cti user login, you can use console command genpass to generate an encrypted password
    • Hint: false means not to use encryption for the communication between DMCCLogger and AES
    • Hint: protocol version 6 is used
    • Hint: SWITCHNAME is the switch name configured in AES
  • update parameter dmcc_licensekey encrypted_license_key
    • Hint: Please obtain a valid license key from upinget.com
  • update parameter dmcc_rtpbindingaddress 192.168.1.123
    • Hint: Use the IP address of the DMCCLogger as RTP binding address
  • add extension 10001 default oKd75RltJLcf+uXkp2CYHA==
    • Hint: add the extension 10001 using default (multiple registration) method, the password is in encrypted format
    • Hint: to get encrypted password, please use command “genpass” in tcpgate console
  • add phantom 20001 oKd75RltJLcf+uXkp2CYHA==
    • Hint: add phantom device 2001 with encrypted password, the phantom device is used in single step conferencing recording mode

RedHat/CentOS 7.x Installation Procedure

  • centosredhat
  • The following is for RedHat/CentOS 7 64 bit OS only, other Linux distribution is similar
  • Login as root and execute the following commands
  • Disable SELINUX and stop firewall
  • sed -i 's/\(^SELINUX=\).*/\SELINUX=disabled/' /etc/selinux/config
    systemctl disable firewalld
    systemctl stop firewalld
    reboot
  • The DMCCLogger uses ffmpeg for audio conversion, you can download the precompiled version by this URL https://www.vultr.com/docs/how-to-install-ffmpeg-on-centos
  • sudo yum install epel-release -y
    sudo yum update -y
    sudo shutdown -r now
    sudo rpm --import http://li.nux.ro/download/nux/RPM-GPG-KEY-nux.ro
    sudo rpm -Uvh http://li.nux.ro/download/nux/dextop/el7/x86_64/nux-dextop-release-0-5.el7.nux.noarch.rpm
    sudo yum install ffmpeg ffmpeg-devel -

  • Install the MySQL 8.x
  • sudo rpm -Uvh https://dev.mysql.com/get/mysql80-community-release-el7-1.noarch.rpm
    sudo yum --enablerepo=mysql80-community install mysql-community-server
    sudo service mysqld start
    grep "A temporary password" /var/log/mysqld.log
    mysql_secure_installation

  • Install the following packages
  • yum install telnet ntp
    yum install mysql-connector-odbc unixODBC
  • Config and start MySQL
  • systemctl enable mysqld
    systemctl start mysqld
    Config and start ntpd
    systemctl enable ntpd
    systemctl start ntpd
  • Copy timezone from tzselect
  • tzselect
  • Example:
  • ln -sf /usr/share/zoneinfo/America/Vancouver /etc/localtime
  • Create database and user
  • mysql -u root -p
    create database dmcclogger;
    create database alarchived;
    create user 'dmcclogger'@'localhost' identified by 'P@ssw0rd';
    ALTER USER 'dmcclogger'@'localhost' IDENTIFIED WITH mysql_native_password BY 'P@ssw0rd';
    grant all on dmcclogger.* to 'dmcclogger'@'localhost';
    grant all on alarchived.* to 'dmcclogger'@'localhost';
    flush privileges;
    quit
    mkdir ~/dmcclogger
    cd ~/dmcclogger
    curl -L -O http://downloads.sourceforge.net/project/dmcclogger/dmcclogger-1.0.4.tar.gz
    tar xzvf dmcclogger-1.0.4.tar.gz
    cd centos
    mysql -h localhost -u dmcclogger -p dmcclogger < dmcclogger.sql
    mysql -h localhost -u dmcclogger -p alarchived < alarchived.sql
  • Copy the following to /etc/odbc.ini file
    • [DMCCLOGGERCFG]
      Description = MySQL connection to DMCCLogger
      Driver = MySQL ODBC 8.0 ANSI Driver
      Server = localhost
      Port = 3306
      Database = dmcclogger
    • [DMCCLOGGERCINFOCFG]
      Description = MySQL connection to DMCCLogger
      Driver = MySQL ODBC 8.0 ANSI Driver
      Server = localhost
      Port = 3306
      Database = dmcclogger
    • [ALARCHIVEDCFG]
      Description = MySQL connection to DMCCLogger Archive Daemon
      Driver = MySQL ODBC 8.0 ANSI Driver
      Server = localhost
      Port = 3306
      Database = alarchived
  • Create user and copy files
  • adduser dmcclogger -M -c "DMCCLogger User"
    yum install httpd php php-mysql
    echo "Options -Indexes" > /var/www/html/.htaccess
    chown -R dmcclogger.dmcclogger /var/www/
    chown -R dmcclogger.dmcclogger /var/lib/php/session/
    sed -i 's/^\(User\|Group\).*/\1 dmcclogger/' /etc/httpd/conf/httpd.conf
    sed -i 's/AllowOverride None/AllowOverride All/' /etc/httpd/conf/httpd.conf
    service httpd restart
    systemctl enable httpd
    mkdir /usr/local/dmcclogger
  • Copy files and change permission for 64 bit OS
  • cp DMCCLogger64 /usr/local/dmcclogger
    cp alarchived64 /usr/local/dmcclogger
    chmod +x /usr/local/dmcclogger/DMCCLogger64
    chmod +x /usr/local/dmcclogger/alarchived64
  • Create working directories
  • chown -R dmcclogger.dmcclogger /usr/local/dmcclogger
    mkdir -p /var/log/dmcclogger
    mkdir -p /mnt/dmcclogger/tmp
    mkdir -p /var/log/alarchived
    chown -R dmcclogger.dmcclogger /var/log/dmcclogger
    chown -R dmcclogger.dmcclogger /mnt/dmcclogger
    chown -R dmcclogger.dmcclogger /var/log/alarchived
  • Install DMCCLoggerWeb
  • cd ~/dmcclogger
    cp dmccloggerweb-1.0.4.tar.gz /var/www/html
    cd /var/www/html
    tar xzvf dmccloggerweb-1.0.4.tar.gz
    rm dmccloggerweb-1.0.4.tar.gz
    cd /var/www/html/dmcclogger
    ln -sf /mnt .
    chown -R dmcclogger.dmcclogger /var/www/html/dmcclogger
    yum install php php-mysql
    Change your timezone setting in /etc/php.ini, the parameter is called "date.timezone"
    Change your mysql socket default setting in /etc/php.ini. For example mysql.default_socket = /var/run/mysqld/mysqlx.sock
  • Auto start the daemon after server reboot for 64 bit OS
  • echo "rm /tmp/dmcclogger.log" >> /etc/rc.local
    echo "su dmcclogger -c '/usr/local/dmcclogger/DMCCLogger64 -u dmcclogger -p 40UIt9O3PqtwsSn+Wx6pig=='" >> /etc/rc.local
    echo "rm /tmp/alarchived.log" >> /etc/rc.local
    echo "su dmcclogger -c '/usr/local/dmcclogger/alarchived64 -u dmcclogger -p 40UIt9O3PqtwsSn+Wx6pig=='" >> /etc/rc.local
    chmod +x /etc/rc.local

Ubuntu 20.04 Installation Procedure

  • The following is for Ubuntu 20.04 64 bit OS only, other Linux distribution is similar
  • Change to root and execute the following commands
  • sudo su
    wget https://repo.mysql.com/mysql-apt-config_0.8.16-1_all.deb
    sudo dpkg -i mysql-apt-config_*.deb
  • Install the MySQL 8.x
  • sudo apt-get install mysql-community-client-plugins
    sudo apt-get install mysql-connector-odbc
    sudo apt-get install mysql-connector-odbc-setup
    sudo apt-get install mysql-server mysql-client

  • Install the following packages
  • yum install ffmpeg unixodbc apache2 php php-mysql telnet ntp
  • Create database and user
  • sudo mysql -u root -p
    create database dmcclogger;
    create database alarchived;
    create user 'dmcclogger'@'localhost' identified by 'P@ssw0rd';
    grant all on dmcclogger.* to 'dmcclogger'@'localhost';
    grant all on alarchived.* to 'dmcclogger'@'localhost';
    flush privileges;
    quit
    mysql -u dmcclogger -p dmcclogger < dmcclogger.sql
    mysql -u dmcclogger -p alarchived < alarchived.sql
  • Copy the following to /etc/odbc.ini file
    • [DMCCLOGGERCFG]
      Description = MySQL connection to DMCCLogger
      Driver = MySQL ODBC 8.0 ANSI Driver
      Server = localhost
      Port = 3306
      Database = dmcclogger
    • [DMCCLOGGERCINFOCFG]
      Description = MySQL connection to DMCCLogger
      Driver = MySQL ODBC 8.0 ANSI Driver
      Server = localhost
      Port = 3306
      Database = dmcclogger
    • [ALARCHIVEDCFG]
      Description = MySQL connection to DMCCLogger Archive Daemon
      Driver = MySQL ODBC 8.0 ANSI Driver
      Server = localhost
      Port = 3306
      Database = alarchived
  • Create user and copy files
  • sudo useradd dmcclogger
    sudo mkdir /usr/local/dmcclogger
    sudo cp DMCCLogger64 /usr/local/dmcclogger/
    sudo cp alarchived64 /usr/local/dmcclogger/
    sudo chmod +x /usr/local/dmcclogger/DMCCLogger64
    sudo chmod +x /usr/local/dmcclogger/alarchived64
    sudo chown -R dmcclogger.dmcclogger /usr/local/dmcclogger
    sudo mkdir -p /var/log/dmcclogger
    sudo mkdir -p /mnt/dmcclogger/tmp
    sudo mkdir -p /var/log/alarchived
    sudo chown -R dmcclogger.dmcclogger /var/log/dmcclogger
    sudo chown -R dmcclogger.dmcclogger /mnt/dmcclogger
    sudo chown -R dmcclogger.dmcclogger /var/log/alarchived
  • Enable /etc/rc.local by the this procedure
  • Install DMCCLoggerWeb
  • cd /var/www/html
    echo "Options -Indexes" >> .htaccess file
    sudo chown -R dmcclogger.dmcclogger /var/www/
    sudo chown -R dmcclogger.dmcclogger /var/lib/php/sessions/
    cd /etc/apache2/
    sudo vi envvars
    Change APACHE_RUN_USER=dmcclogger
    Change APACHE_RUN_GROUP=dmcclogger
    sudo sed -i 's/AllowOverride None/AllowOverride All/' apache2.conf
    service apache2 restart
    tar xzvf dmccloggerweb-1.0.4.tar.gz
    sudo mv dmcclogger /var/www/html
    cd /var/www/html/dmcclogger
    sudo ln -sf /mnt .
    sudo chown -R dmcclogger.dmcclogger /var/www/html/dmcclogger
  • Auto start the daemon after server reboot
  • echo "rm /tmp/dmcclogger.log" >> /etc/rc.local
    echo "su dmcclogger -c '/usr/local/dmcclogger/DMCCLogger64 -u dmcclogger -p 40UIt9O3PqtwsSn+Wx6pig=='" >> /etc/rc.local
    echo "rm /tmp/alarchived.log" >> /etc/rc.local
    echo "su dmcclogger -c '/usr/local/dmcclogger/alarchived64 -u dmcclogger -p 40UIt9O3PqtwsSn+Wx6pig=='" >> /etc/rc.local
    chmod +x /etc/rc.local

DMCCLogger Web

  • DMCCLogger Web is a web based application for searching of call recording based on parameters such as date time, extension number, agent ID, calling number, etc.
  • Follow the steps below for the installation and configuration of DMCCLogger Web for CentOS. The steps for other Linux distribution are similar.
    • yum install httpd
    • chkconfig httpd on
    • service httpd start
      • Hint: if you do not install httpd before
    • cp dmccloggerweb-1.0.4.tar.gz /var/www/html
      • Hint: the dmccloggerweb-1.0.4.tar.gz is in the dmcclogger-x.x.x.tar.gz file
    • cd /var/www/html
    • tar xzvf dmccloggerweb-1.0.4.tar.gz
    • rm dmccloggerweb-1.0.4.tar.gz
    • cd /var/www/html/dmcclogger
    • ln -sf /mnt .
      • Hint: to symbolic link voice record directory to DMCCLogger Web directory
    • chown -R dmcclogger.dmcclogger /var/www/html/dmcclogger
      • Hint: change the ownership to dmcclogger
    • yum install php
    • yum install php-mysql ntp
    • Change your timezone setting in /etc/php.ini, the parameter is called “date.timezone
    • chmod 777 /var/lib/php/session
    • service httpd restart
    • vi config.php
      • Hint: change the $mysqlHost in config.php to the ip address of your sql server
    • http://ip-of-dmcclogger-web/dmcclogger/
      • Hint: default admin username is admin and password P@ssw0rd

Trace / System Real Time Monitoring

  • You can turn on the trace and see the real time system status by telnet to the DMCCLogger port 14005, entering username tcpgate and password tcpgate01
  • Enter the following in the console prompt
    • trace on asc

DMCCLogger API

  • DMCCLogger API is for logging of application data related to its voice record, 10 data fields are supported. API is provided as OCX and DLL formats, the library files and sample applications are provided in the zip file.
  • To enable API support, enter the following command in the program console
    • add tcp 5002 * * custom dlapi
    • Hint: API server will be listened on port 5002.
  • Call info record will be deleted immediately after agent call hangup, to enable agent can write application data after call end, edit the parameter dmcc_recorddeletedelay.  If you want agent can write record in 30 seconds after call hangup, set the value to 30.

DMCCLogger REST interface

  • DMCCLogger REST interface is for Web application integration
  • To enable HTTP header with username and password, please change parameter “dmcc_credentialrest” to “true”
  • To add REST interface port, enter the following command
    • add tcp 5003 * * custom dlrest
  • The URL for querying of device status is
    • http://server:port/extstatus?extension=12345
  • The URL for listing of all device status is
    • http://server:port/listextstatus
  • The URL for saving application data is
    • http://server:port/savedata?extension=12345&recordkey=12345.6789&data0=hello&data9=world
  • The URL for supervisor silent monitoring is
    • http://server.port/silentmonitor?agentextension=12345&supervisorextension=12346
  • The URL for pause recording
    • http://server.port/pauserecording?extension=12345
  • The URL for unpause recording
    • http://server.port/unpauserecording?extension=12345
  • The URL for adding agent extension
    • http://server.port/addextension?extension=12345&mode=default&password=123456&info=Pos124
  • The URL for delete of agent extension
    • http://server.port/deleteextension?extension=12345
  • The URL for listing of agent extension
    • http://server.port/listextension
  • The URL for adding phantom extension
    • http://server.port/addphantom?extension=12345&password=123456
  • The URL for delete of phantom extension
    • http://server.port/deletephantom?extension=12345
  • The URL for listing of phantom extension
    • http://server.port/listphantom
  • The URL for adding acd extension
    • http://server.port/addacd?extension=12345
  • The URL for delete of acd extension
    • http://server.port/deleteacd?extension=12345
  • The URL for listing of acd extension
    • http://server.port/listacd
  • The URL for adding of api user
    • http://server.port/addapiuser?username=api&password=Lorlyurr3Hol&fullname=WEB
  • The URL for delete of api user
    • http://server.port/deleteapiuser?username=api
  • The URL for listing of api user
    • http://server.port/listapiuser
  • The URL for adding of encryption key
    • http://server.port/addencryptionkey?key=Piep9siwenod
  • The URL for listing of encryption key
    • http://server.port/listencryptionkey
  • The URL for adding of record path
    • http://server.port/addrecordpath?extension=12345&path=/mnt/dmcclogger/projectA/
  • The URL for delete of record path
    • http://server.port/deleterecordpath?extension=12345
  • The URL for listing of record path
    • http://server.port/listrecordpath
  • The URL for adding of email notification
    • http://server.port/addemail?mail=abc@example.com
  • The URL for delete of email notification
    • http://server.port/deleteemail?email=abc@example.com
  • The URL for listing of email notification
    • http://server.port/listemail
  • The URL for update email configuration
    • http://server.port/emailconfig?emailauth=yes&emailssl=yes&emailserver=10.0.0.1&emailport=25&emailusername=abc&emailpassword=123456&emailsenderaddress=abc@example.com&emailsenderdisplay=dmcclogger
  • The URL for test email configuration
    • http://server.port/testemail
  • The URL for encryption configuration
    • http://server.port/encryption?enable=yes
  • The URL for RTP binding address configuration
    • http://server.port/rtpbindingaddress?ip=10.10.10.1
  • The URL for displaying of license
    • http://server.port/displaylicense
  • The URL for updating of license, URLEncode the license to avoid any confusing characters
    • http://server.port/updatelicense?key=Bbshtj3sohqSKqqY41wM%2Fv7aHG%2FKPvH5N%2B950sE0Nvnu0gP6lJNpoyswC0OUZVudrTw89lS%2B9b9tjw9xOAo8Ww%3D%3D
  • The URL for adding parameter
    • http://server.port/addparameter?variable=bcms_hello&value=world
  • The URL for updating parameter
    • http://server.port/updateparameter?variable=bcms_hello&value=world2
  • The URL for delete of parameter
    • http://server.port/deleteparameter?variable=bcms_hello
  • The URL for listing of parameter
    • http://server.port/listparameter
  • The URL for reload parameter
    • http://server.port/reload
  • The URL for updating DMCC link parameter
    • http://server.port/updateparameter?variable=dmcc_dlink_01&value=AESIP#4721#CTIUSER#ENCRYPTEDPASSWD#false#6#SWITCHNAME
  • The URL for checking of link status
    • http://server.port/linkstatus

DMCCLogger WebSocket interface

  • DMCCLogger WebSocket interface is for Web application integration
  • To add WebSocket interface port, enter the following command
    • add tcp 9090 * * custom dlws
  • WebSocket interface accepts JSON request, returns JSON response and delivers unsolicited JSON evens
  • The JSON strings for Connect request and response are
    • {id: “1”, request: “connect”, extension: “12345”, agentid: “56789”}
    • {msgtype: “response”, id: “1”, result: “success”}
  • The JSON strings for Disconnect request and response are
    • {id: “2”, request: “disconnect”}
    • {msgtype: “response”, id: “2”, result: “success”}
  • The JSON strings for SaveData request and response are
    • {id: “3”, request: “savedata”, extension: “12345”, recordkey: “12345.6789”, data0: “hello”, data9: “world”}
    • {msgtype: “response”, id: “3”, result: “success”}
  • The JSON string for RecordStart event is
    • {msgtype: “event”, eventtype: “recordstart”, extension: “12345”, recordkey: “12345.6789”, ucid: “00001094861421138402”, calling: “12345”, called: “12346”}
  • The JSON string for  RecordEnd event is
    • {msgtype: “event”, eventtype: “recordend”, extension: “12345”, recordkey: “12345.6789”}

DMCCLogger Desktop

  • Follow this link to find the details of the application

Monitor DMCCLogger Status

  • Monitoring of DMCCLogger status is supported via the DMCCLogger Web
  • In the program console of DMCCLogger, enter the following command to enable this feature
    • add tcp 5004 * * custom dlxml
  • From the DMCCLogger Web, select the Add Logger and enter the logger’s IP address and listening port
  • After the logger is added, select the Logger Status from menu to view the logger status

DMCCLogger Archive Daemon

  • The DMCCLogger Archive Daemon is for archiving of voice files to backup directory and deletion of voice files which over retention period set by the program.
  • Telnet to the program console, the console port number is 14020, enter username tcpgate and password tcpgate01.
  • If your archive directory mount point is /archive/, execute the following command to add archive directory.
    • add archivepath /archive/
    • Hint: make sure the /archive/ directory is writable by user dmcclogger
    • Hint: archiving interval can be fine tuned by a parameter called al_archiveschedulerinterval which the default value is 30 seconds.
  • The program monitors the recordpath usage and deletes voice files in the record paths automatically when the usage reached a defined level. The threshold parameter is called al_hddthreshold, by default it it set to 90 percent, meaning of deletion old files when the usage level reached 90%. The monitor interval can be fine tuned by a parameter called al_hddcleanerinterval which the default value is 10 seconds. Also, a parameter called al_purgewithoutarchive to control file deletion can be performed without archiving, the default value is “no”.
  • If you have retention period requuirement on recordpath or archivepath, execute the following command to add retention rule. Please pay attention to this command because voice files may be deleted before they are archived when the archiving function is failed.
    • add retentiondir /mnt/ 90 90DaysRetentionPeriod
    • Hint: the program deletes files in directory /mnt/ when its creation time is over 90 days
    • Hint: retention thread execution interval can be fine tuned by a parameter called al_retentionschedulerinterval, the default value is 30 seconds.

Alarm Notification

  • Alarm notification via email is supported, you need to config the following parameters
    • tg_emailserverip, this is the IP address of your email server.
    • tg_emailsmtpport, this is the SMTP port of email server, default value is 25.
    • tg_emailusername, the username to login the email server.
    • tg_emailpasswd, the encrypted password. The database only store encrypted password due to security reason, to generate an encrypted password, enter the following command in the program console and paste the encrypted password for the parameter tg_emailpasswd.
      • genpass
    • tg_emailsenderaddress, the email address used to send notification emails.
    • tg_emailsenderdisplay, the display name used to send notification emails.
    • tg_emailauth, if authentication is required, set the value to “yes“. The default value is “no” when your mail server trust your DMCCLogger server.
    • tg_emailssl, if SSL is required, set the value to “yes“. The default value is “no“.
  • Enter the following command to add email address for the receive of alarm notification, e.g.
    • add email service@upinget.com

Known Issues

Support and License
